Dynacyte

Eggsbee® Mammalian Bundle

Eggsbee® Mammalian Bundle

Regular price $11,999.00 USD
Regular price Sale price $11,999.00 USD
Sale Sold out
Power Adapter Configuration

Bundled package with the full works is the fastest way to get started. Assemble in 30 seconds. Connect Eggsbee® to Wi-Fi and control or program it using Eggsbee® Online. Powerful, affordable bioreactor to get your process in the motion.

About this Bundle:
The Eggsbee® Mammalian Bundle is meticulously designed to cater to the specific needs of mammalian cell culture, offering a comprehensive solution that combines ease of use with advanced functionality. With a focus on precision and reliability, this bundle includes specialized components such as the Cellprop™ Stir Pros for gentle mixing and an array of sensors for precise control over the environment, making it ideal for sensitive mammalian cell processes. The inclusion of a robust selection of sensors and modules ensures that users can achieve optimal conditions for mammalian cell growth, with the flexibility to adjust parameters as needed through Eggsbee® Online.

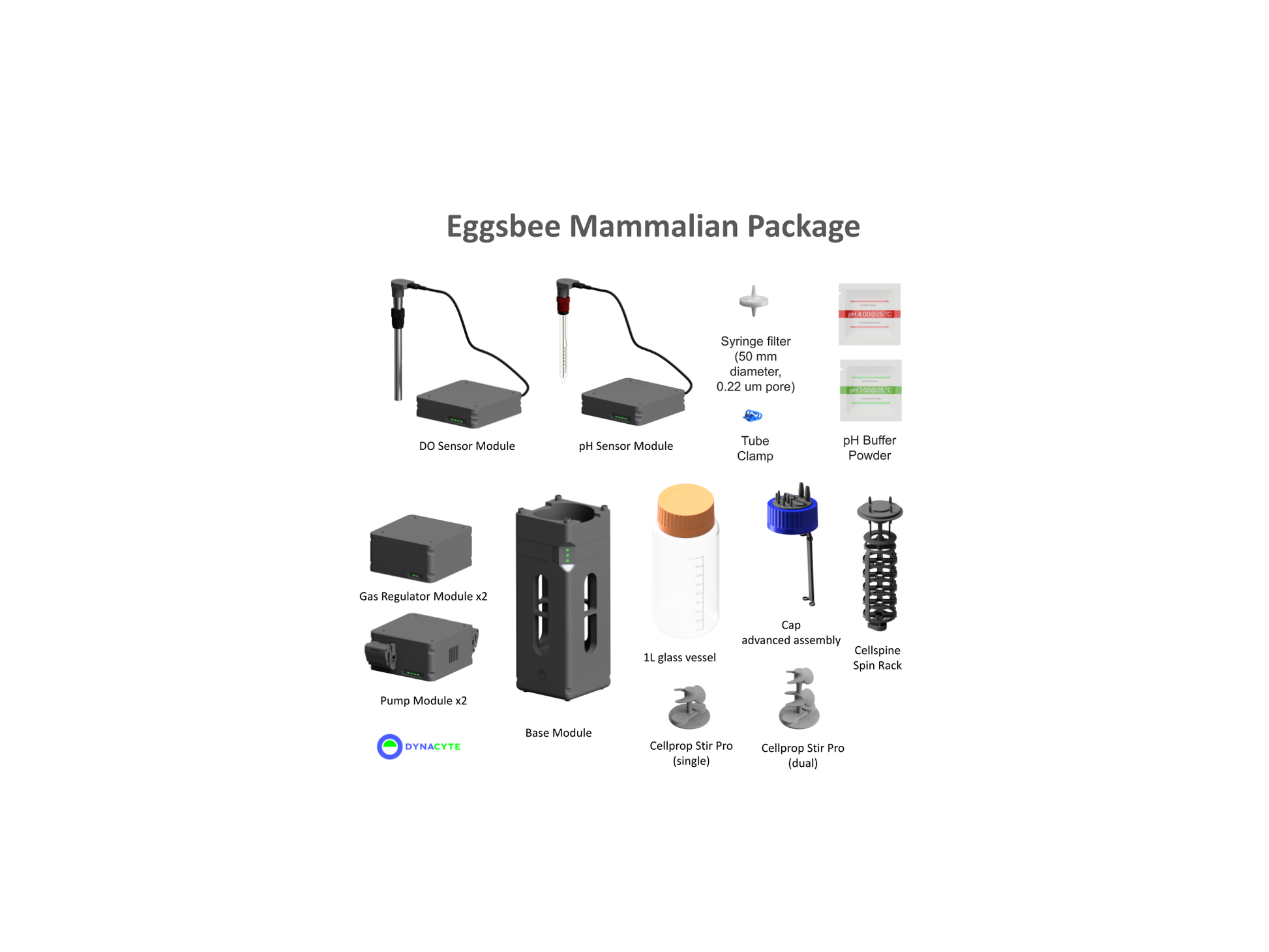

Includes:

BASE, integrated features:
- 8x optical density (OD) sensors
- 4x independent temperature circuits with co-processors
- 4x contact thermometers in the thermal jacket
- 1x infrared (IR) sensor for measuring in-vessel temperature
- 1x carbon dioxide (CO2) sensor for integrated off-gas monitoring
- 8x volatile organic compounds (VOC) sensor for integrated off-gas monitoring  (compatible with Autogrow™ Beta add-on)
- 1x internal magnetic stirrer, high strength rare earth magnetic design, programmable electronic feedback control
- 2x Eggsbee® protocol USB-C jacks (use only with Eggsbee® devices due to power delivery specifications)
- Wi-Fi enabled
- Internal Eggsbee® Online & Bioworlds™ Gateway-enabled Access Client Computer

MODULES
- Pump Module x2
- Gas Regulator Module x2
- pH Module
- Dissolved Oxygen (DO) Module - reader and adapters included, compatible with Hamilton optical DO probes (digital readout). OEM DO probe/electrode sold separately - check DO module listing here for probe/electrode pricing)

VESSELS
- 1-litre glass vessel with sealed orange cap
- Cap, Advanced Assembly

BOOSTERS
- Magnetic Stirrer Bead, PTFE
- Cellprop™ Stir Pro (single) (BETA)
- Cellprop™ Stir Pro (dual) (BETA)
- Cellspine Spin Rack (BETA)
- Performance Silicone Tubings
- Tube Clamps
- Syringe filter (50 mm diameter, 0.22 um pore)
- Assortment of Cap Plugs
- pH 4 Buffer Powder (for 250mL liquid)
- pH 7 Buffer Powder (for 250mL liquid)

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Specifications

Eggsbee™ Base Module

Weight: 1,200 g

Base Dimensions: 110 x 110 x 330 mm

Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W

Operating System: EggOS 1.0

Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth

Remote Management: Eggsbee™ Online

Platform Integration: BIOWORLDS™ compatible

Alarm Indicator: Audible alarm

Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems

Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors

Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile

Built-in Illumination: White broadband LED, controllable

Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup

Eggsbee™ Internal Vessel

Max Volume: 1 L

Vessel Material: Glass

Cap Options: 4-port or 6-port options

Eggsbee™ Gas Monitor Add-on

Form factor: internal

Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)

Analysis Platforms: Eggsbee™ Online; BioWorlds™

Eggsbee™ Pump Module

Pump Module Weight: 1,100 g

Pump Module Dimensions: 110 x 110 x 80 mm

Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible

Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction

Daisy Chainable: Yes
